Cisco NCS 1000 64 chs Odd Mux/Demux Patch Panel – C-band

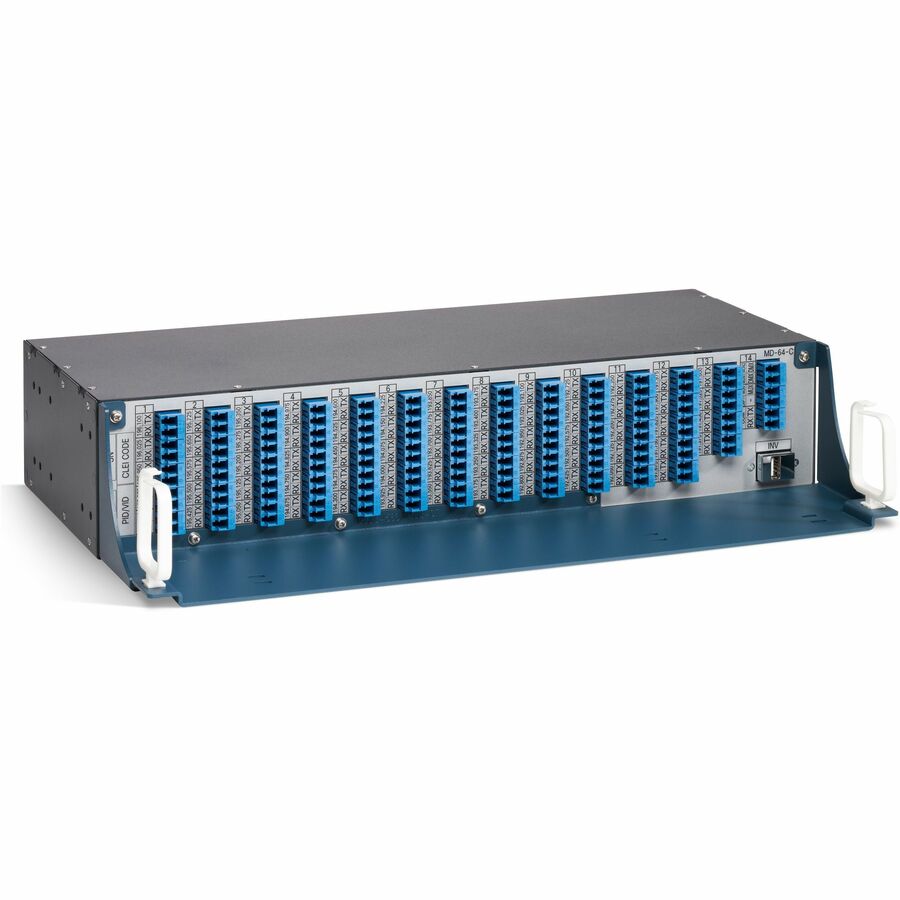

The Cisco^®NCS 1000 Mux/Demux 64-Channel Patch Panel is a standalone passive unit that contains both a 64-channel optical multiplexer and a 64-channel optical demultiplexer, precabled within the unit’s housing.

This unit provides support for 400ZR and NCS1004 multihaul coherent channels up to 63 Gbaud at 75-GHz spacing. This filter is designed with optimum tradeoff between bandwidth and isolation for a network designed with 64 channels of 400ZR.

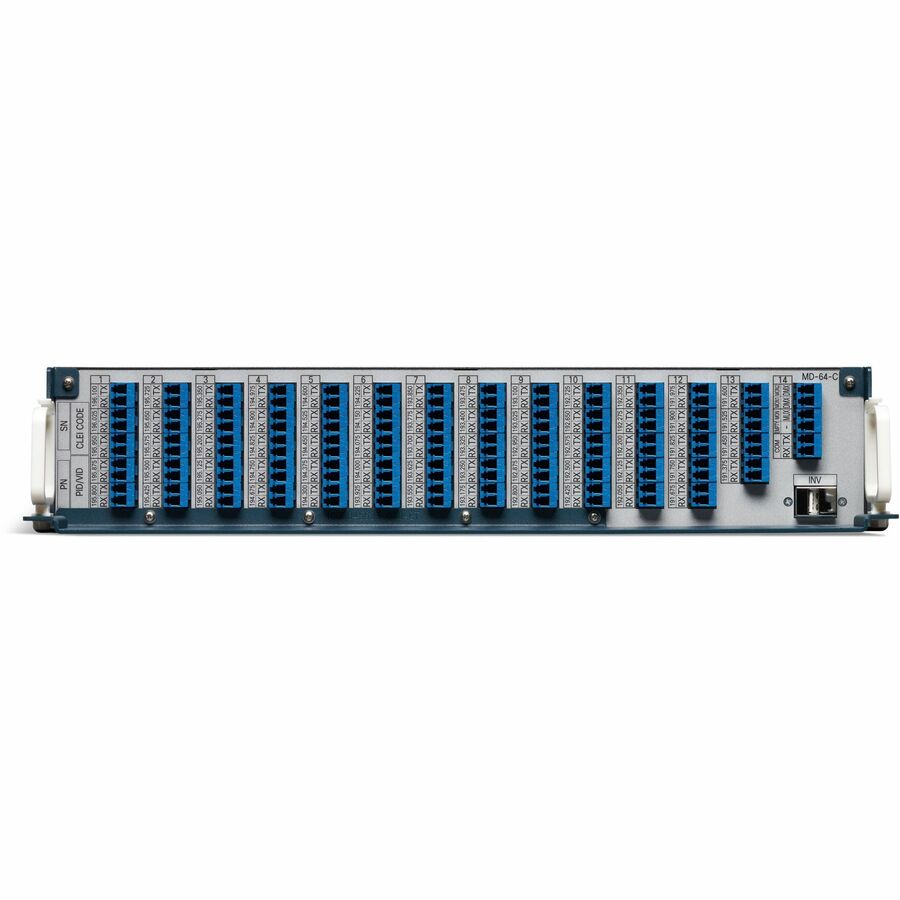

The panel’s ports are arranged in 18 columns and 5 rows. The placement of the clips provides optimal fiber routing, facilitating the addition of fibers in an incremental manner and resulting in a simple design that is easy to maintain and troubleshoot. A separate tie wrap is provided for fastening the USB cable used for passive inventory management and storage of insertion loss values. The panel shall fit into ETSI 300-mm and ANSI 450-mm racks.

• Optimized for network architectures with 400ZR and openZR+ DCOs
• Can be used in multiple use cases:
• Standalone with any third-party line systems
• With NCS1001 line system for metro P2P applications
• With NCS2000 line system for ROADM use cases
• Ease of operation with 400ZR or openZR+ optics on the router and NCS1001 as line system
• Suitable for 63-Gbd coherent DWDM channels from Cisco or any alien transponder
• Best-in-class operational efficiency with zero electrical power requirements
• Fiber management plate with integrated clips for secure but easy fiber access
• Low optical insertion loss for improved distance and performance
• USB port for passive inventory
