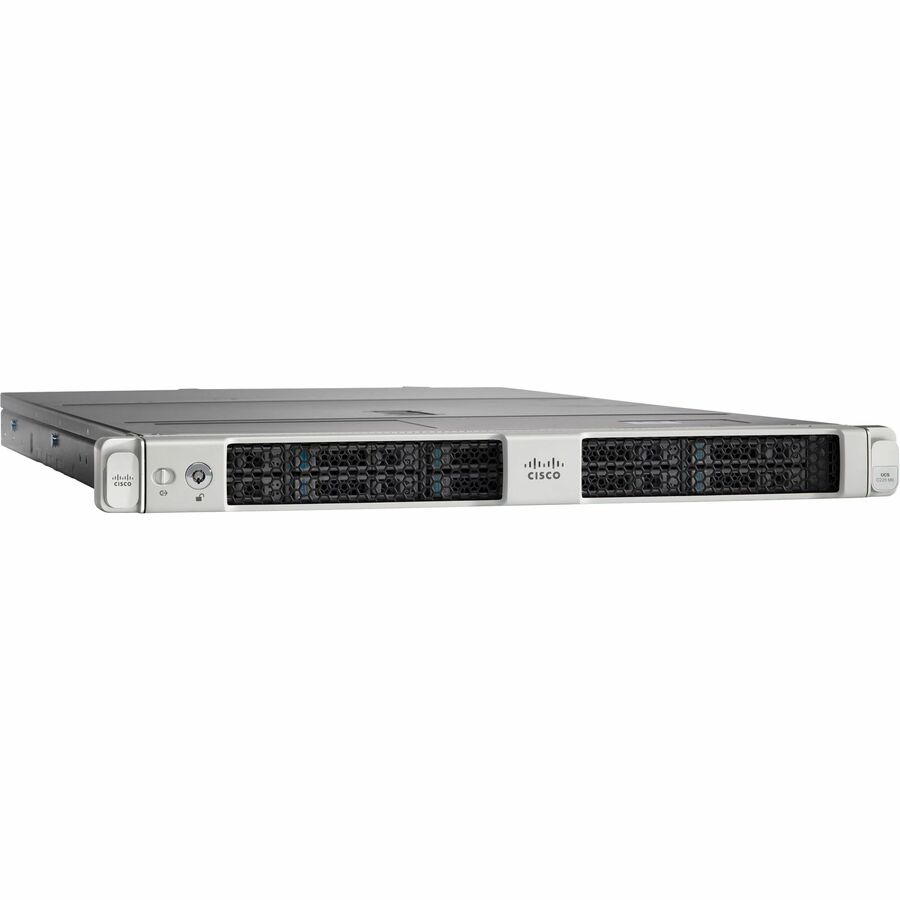

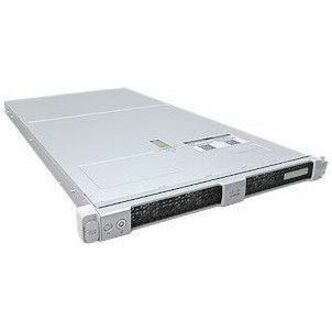

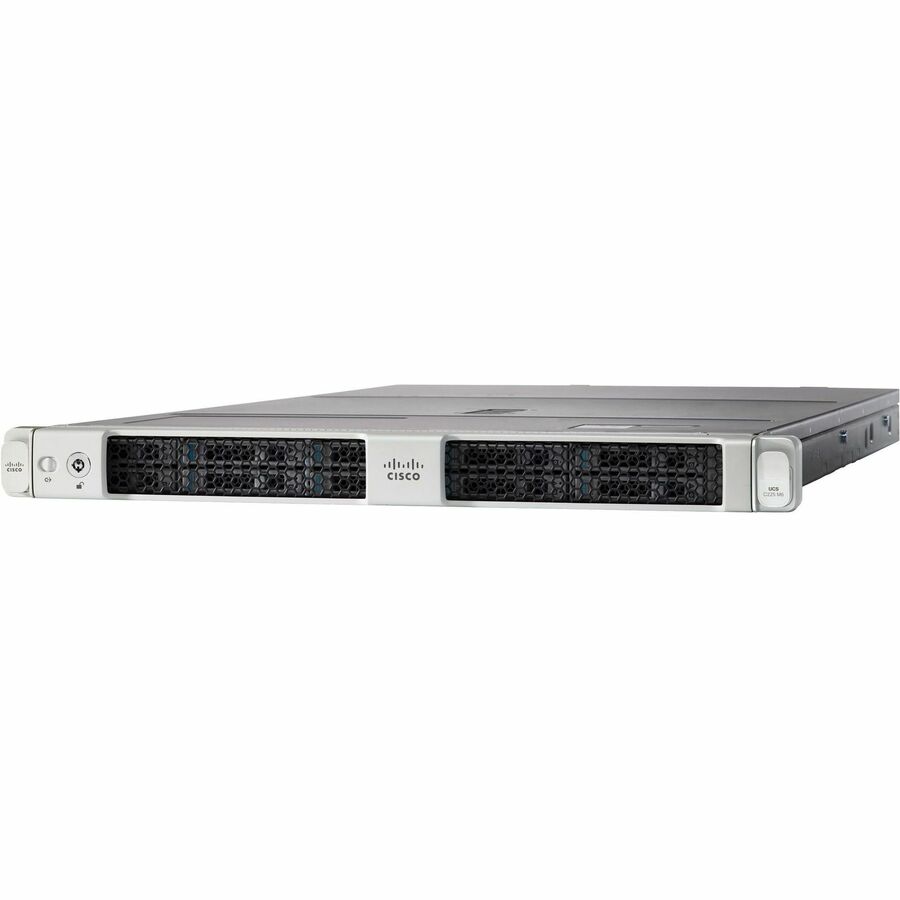

Cisco Barebone System – 1U Rack-mountable – 2 x Processor Support

The UCS C225 M6 SFF server extends the capabilities of Cisco’s Unified Computing System portfolio in a 1U form factor with the addition of the AMD CPUs, 16 DIMM slots per CPU for 3200-MHz DDR4 DIMMs with DIMM capacity points up to 128 GB. The maximum memory capacity for 2 CPUs is 4 TB (for 32 x 128 GB DDR4 DIMMs).

There are several front drive and rear riser configurations:

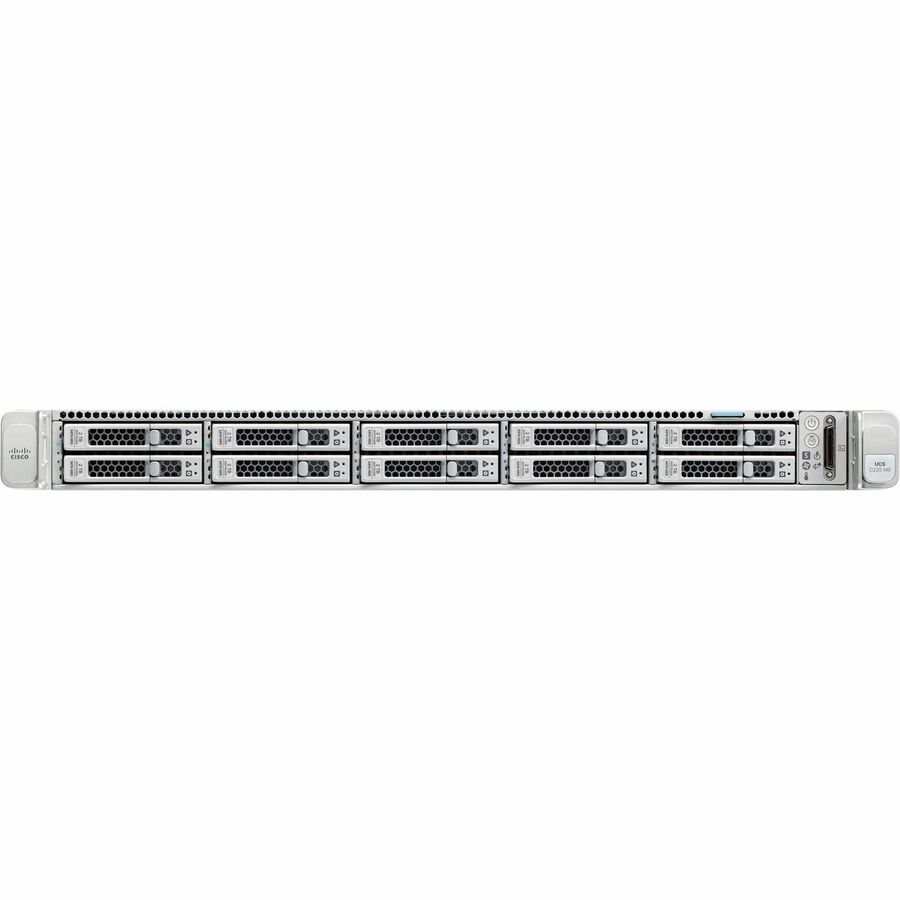

Front Drives

• Option 1: Up to 10 SAS/SATA/NVMe drives (up to 4 of the drives can be NVMe)
• Option 2: Up to 10 NVME drives (all drives are NVMe)

Rear PCIe Risers

• One to three half-height PCIe risers, or
• One to two full-height PCIe risers

The server provides an internal slot for one of the following:

• Cisco 12G RAID controller with cache backup to control SAS/SATA drives, or
• Cisco 12G SAS pass-through HBA to control SAS/SATA drives

• Perform computational tasks effectively accrediting the EPYC processor
• DDR4 SDRAM compatible slot – Installs memory that reduces processor’s idle time and enhances computer’s performance
• Featuring Gigabit Ethernet port for ultra-fast network speeds
• With 2 USB ports, connect/disconnect devices while not having to shut down the system
• Serial ATA interface provides quick data transfer and greater throughput
