ATEN KH1508A KVM Extender

The KH1508A differs from the KH1508 in that the A release uses CPU modules with a permanent CAT5 cable molded into a single unit, and the console port now supports any combination of PS/2 and USB keyboards and mice

It allows access to eight directly connected computers, and through a daisy chain connection, an additional 31 KVMs to control a total of 256 computers from a single console.

• Two-Level Password Security – Supports one administrator and ten user profiles. Password protection prevents unauthorized accessing to the installation
• Multiple User Accounts – Supports up to 10 user and 1 administrator accounts
• Multiplatform support – PC, Mac, Sun, and serial
• Configue port access rights for users on a port – by – port basis

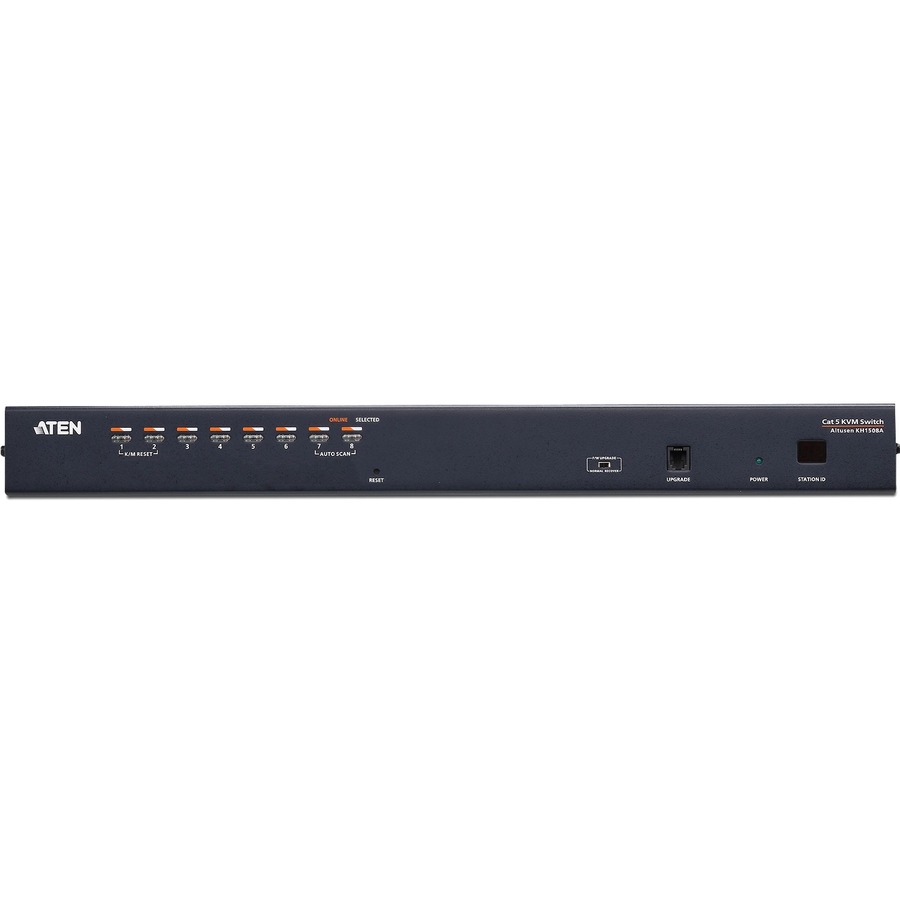

• Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)
• Superior Video Quality- Supports the video resolutions up to 1920 x 1200 @60Hz for up to 30 meters, 1600 x 1200 @60Hz for up to 40 meters, and 1280 x 1024 @75Hz for up to 50 meters*
• Console conversion – any type of KVM console can control any type of computer; mixed combinations (PS/2&USB) supported on both the KVM console and computer sides

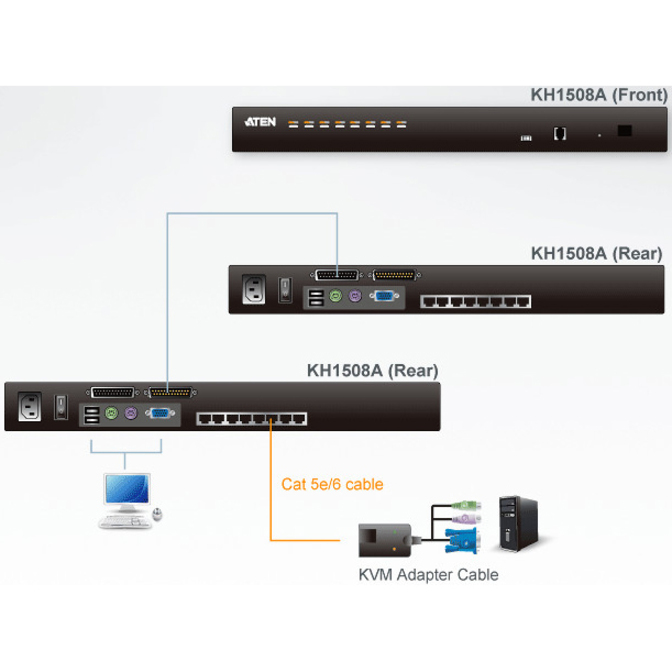

• By daisy chaining up to 31 additional KH1508A switches, as many as 256 computers can be controlled from the original KVM console
• One KVM console control up to 8 directly connected computers
• Space-Saving RJ-45 connectors and Cat 5e/6 cabling
